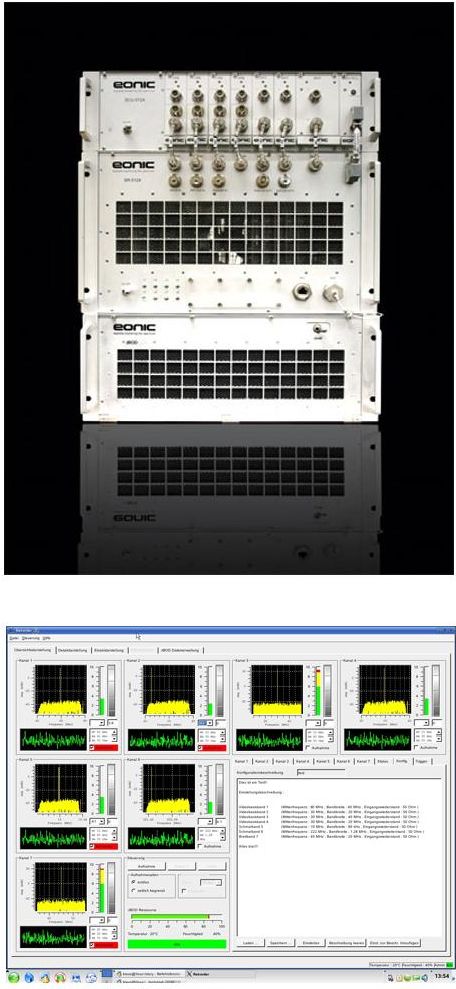

SR-5124 combines a world-class ELINT analyser with a fully-featured COMINT recorder.

EONIC’s SR-5124 is an “all-in-one” SIGINT Recorder. It can be deployed for SIGINT, COMINT, FISINT and ELINT. The system contains one broadband channel, two narrowband channels and four video baseband channels. It furthermore boast a digital to analog output channel. All signals can be conditioned for anti-aliasing and gain control. Recording is conducted at speeds of up to 400MBPS on a 1.7 TB harddisk (JBOD). The key features are:

State of the art ELINT:

• High Bandwidth: up to 80 MHz BW per Channel. Expandable to 1 GHz IF at 500 MHz Bandwidth
• AM/FM signals with 4 VBB channels: SFDR >88 dBc; SNR >68 dB (and higher after DDC)
• BBIF:160MHz IF, 80 MHz BW SFDR > 82dBc. SNR > 63 dB (and higher after DDC)

Fully Featured COMINT:

• Supports all common Milcom IFs (100 kHz, 200 kHz, 455 kHz, 10.7 MHz, 21.4 MHz)
• Supports all common Satcom IFs (70 MHz, 140MHz)

User Selectable Clock Generation

Phase Coherent Data Acquisition (Synchronized Recording of Multiple Channels)

User Selectable Frequencies and Bandwidths with automatic configuration of DDCs and DUCs

Simultaneously Recording, Display and Playback

Voice and Text Annotations whilst Recording

Supporting Industry Standard Interfaces, Data Export and Import via Gigabit Ethernet or USB 2.0

IRIG A, IRIG B and GPS Time Code Recording

Snapshots of all (user) selected input signals to be recorded and shown in Amplitude vs Frequency, Time vs. Frequency (spectral information) and Amplitude Vs. Time. Snapshot windows are enlarged to fit full screen to show maximum signal detail.

Quick analysis of recorded signals from local or remote storage media. Voice and text annotation and export of the evaluated signals. Data Import functionality enables import of recorded data from other media via Gbit Ethernet or USB 2.0 and analyzed or replayed (DAC).

Overview of all recorded signals, ready for replay/formatting and export via Gbit Ethernet or USB 2.0 to external storage media for further analysis. Recorded data can be write protected, crash protected, defragmented and much more...

Selection of online (during recording) or on-line playback mode. Setting of the re-sampling rate, loop replay and (analog) signal output channel selection.

Snapshots of all input signals in frequency and time domain, temperature and humidity info, available disk capacity, user setting of recording parameters like IF, Bandwidth, Trigger and user editable logbook.

EONIC Worldwide Free Warranty and Support for 2 Years after Delivery
